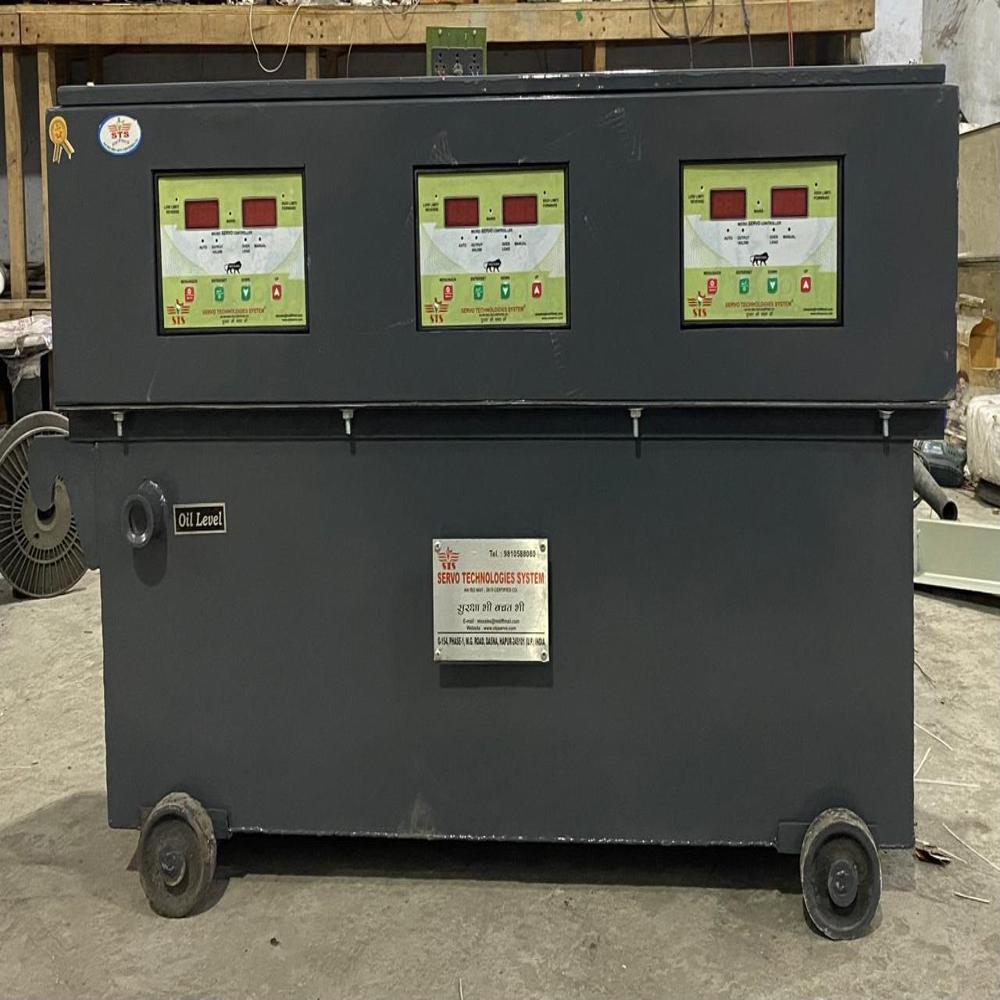

30 Kva Servo Voltage Stabiliver Three Phase Oil Cooled

Name: 30 Kva Servo Voltage Stabiliver Three Phase Oil Cooled
Brand: SERVO TECHNOLOGIES SYSTEM
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Piece

Get a Price/Quote

30 Kva Servo Voltage Stabiliver Three Phase Oil Cooled Specification

Display
LCD

Waveform Distortion
nil

Voltage Protection
inbuilt

Ambient Temperature
40 Celsius (oC)

Rated Power
25 kva

Current Type
AC

Output Voltage
230 Volt (V)

Product Type
Servo voltage stabilizer

Efficiency
98%

Frequency (MHz)
50 Hertz (HZ)

Input Voltage
300-470 Volt (V)

Insulation Resistance
5 Mohm

Usage
SVC

Phase
Three Phase

Current
A

Weight
150 Kilograms (kg)

Warranty
One Year

30 Kva Servo Voltage Stabiliver Three Phase Oil Cooled Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Day

Delivery Time
3 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
digital display, oil etc

Main Export Market(s)
Asia

Main Domestic Market
All India, South India, West India, North India, East India, Central India

Certifications
ISO

About 30 Kva Servo Voltage Stabiliver Three Phase Oil Cooled

We are highly appreciated for the manufacturing and supplying of the high quality Oil Cooled Digital Servo Stabilizer that give optimum voltage supply solutions for various industries, offices and residential requirement. With our stabilizers, we offer customized single stabilizer solution that will cater to the complete electrical load and voltage supply. The control circuit controls the voltage automatically and regulates it to a level that is set or required. The best part is that in the entire operation, the voltage regulator does not require any manual interruption, it functions automatically. Once it is set, you dont need to check the voltage every time the main voltage fluctuates.

Features

Latest digital microprocessor controller
High quality raw material
High efficiency
Saves power
Long life with negligible maintenance

Product Details:

Type	Automatic
Phase	Three Phase
Input Voltage	340-480 V
Material	Cast Iron
Control Type	Relay controller
Cooling Type	Oil cooled

Technical Specification

Standard	Confirming to latest IS:9815 and ISO 9001-2008 standard.
Rating	01 KVA-300 KVA single phase. 03 KVA -5000 KVA three phase.
Input Voltage	Single phase (90 v-280 v, 140 v-280 v, 170 v-280 v ) Three phase (150 v-480 v, 250 v-480 v, 270 v-480 v )
Output Voltage	Single phase (220 v/230 v/240 v +/- 1% ). Three phase ( 380 v/400 v/415 v +/- 2% ).
Wave Form Distortion	Nill
Response Time	10 m. Sec
Correction Method	Stepless correction using variable transfer
Control Circuit	Fully automatic IC based solid state
Input Frequency	45-55 Hz
Cooling	Natural air / oil
Efficiency	Better than 98 %
Duty Cycle	Continuous
Operation	Auto / Manual
No Load Loss	Less than 1 %
Suitability	Suitable for 3 phase unbalanced/balanced supply, unbalanced/balanced loads
Operating Temperature	-15c to 50c
Additional Facility	Step down / isolations
Compatibility to	Specially designed control card for faithful
DG Set	Operation on mains as well as DG set.
Control Panel	Power on indicator, low /high input indicator, auto/manual selector switch, push switches to adjust output voltage in manual mode, selector switch to monitor input/output voltage with in 5 % of the set output voltage, volt meter to indicator output/input voltage.
Transformers & Variac Earthing	Are Wound with Conductive Grade copper of 99.9% purity. Low loss CRGO lamination is used to increased over all efficiency. This reduces energy losses and hence saves electricity
High Voltage	With stands 2. 5 KV for power transformer
Insulator	Better than 6 m ohms because of wound
Resistance	Components being baked in the oven at 110 c after vacuum impregnation
