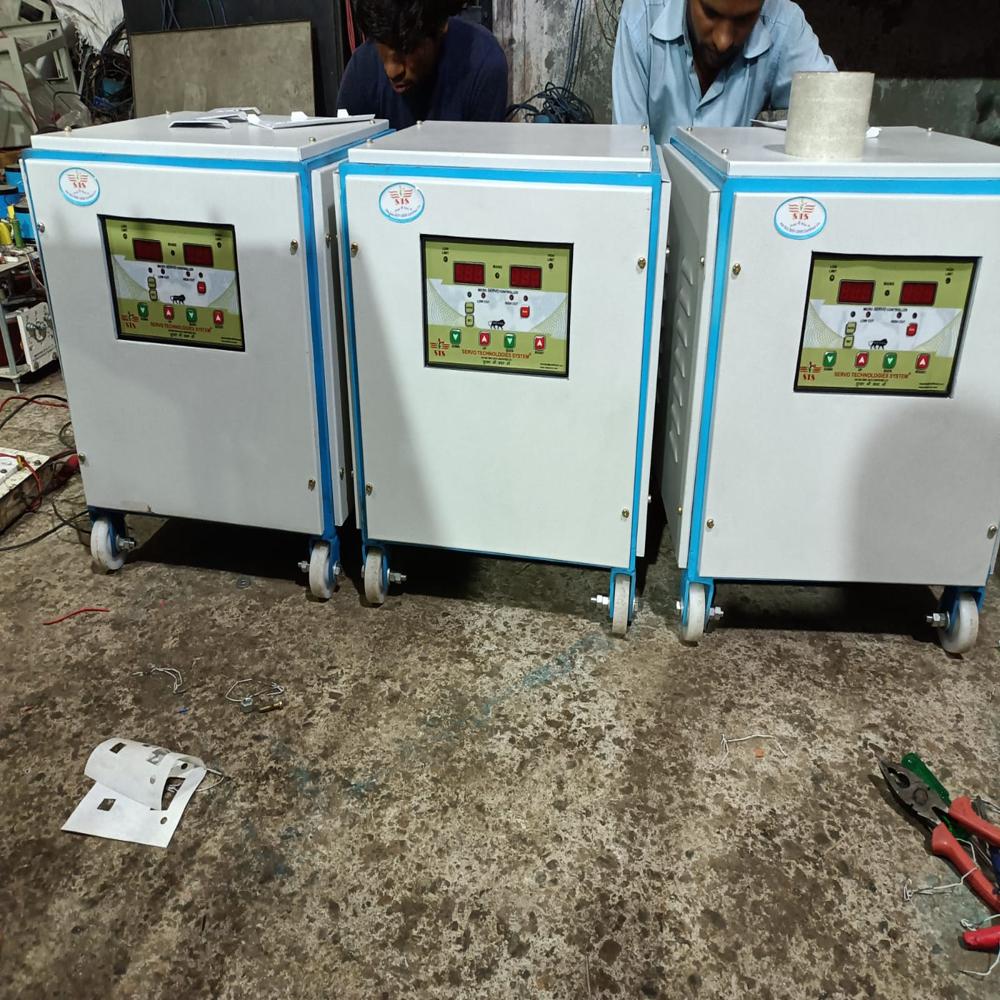

10 KVA Servo Voltage Stabilizer

Name: 230V Automatic Voltage Stabilizer
Brand: SERVO TECHNOLOGIES SYSTEM
Price: 5500 INR
Availability: InStock

Price 20000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

10 KVA Servo Voltage Stabilizer Specification

Input Voltage
170V - 270V AC

Output Voltage
230V 5%

Efficiency
Greater than 98%

Frequency (MHz)
50Hz

Phase
Single Phase

Current
6A

Weight
5.2 kg

Ambient Temperature
0C to 45C

Control System
Microprocessor Based Control

Usage
Automatic Voltage Regulation for Home & Industrial Appliances

Design
Wall Mount, Compact

Insulation Resistance
Better than 2 M

Voltage Protection
High & Low Voltage Cutoff

Display
Digital LED Display

Dimension (L*W*H)
300mm x 180mm x 150mm

Rated Power
1.5 kVA

Current Type
AC

Waveform Distortion
Low, Less than 2%

Product Type
Automatic Voltage Stabilizer

10 KVA Servo Voltage Stabilizer Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
2 Days

About 10 KVA Servo Voltage Stabilizer

Our offered stabilizer has a transformer and a power control circuit for controlling output AC voltage. The circuit controls the voltage automatically and regulates it to a level that is set or required. In the entire operation, the voltage regulator does not require any manual interruption, it functions automatically. This regulator is generally used with the home appliances like refrigerator and air conditioner. This stabilizer has plethora of features and is highly demanded in residential applications for the protection of appliances from voltage fluctuation. It comes with overload protection that secures it during temperature burn out, moreover, it has a functional wall mounting cabinet design that makes it easy to install and maintain.

Features

Compact size
IC controlled electronic circuit
Elegantly designed powder coated metallic chassis
High efficiency
Low power consumption

Technical Specifications:

Input : 140V -280V
Output : 230V +/- 1%
Cooling : air cooled
Duty cycle : continuous
Frequency : 47-53 Hz
Ambient : 0-45o
Environment : Designed for indoor tropical use

Product Details:

Country of Origin	Made in India
Power Source	Electric
Material	MS
Input Voltage	140 V
Power	10 KVA
Phase	Single Phase

Superior Protection for Your Appliances

Rely on optimal safety for your valuable electrical equipment. The stabilizer incorporates multiple layers of protection, including short circuit safeguards, fuse protection, high and low voltage cutoff, and robust insulation resistance. With up to 1.5 kVA rated power, it is suitable for both domestic and light industrial applications.

Efficient Operation and Compact Design

Benefit from the stabilizers high efficiencygreater than 98%which ensures minimal energy loss during operation. Its compact, powder-coated metal build and flexible mounting options make it suitable for any installation space, while a low-noise air cooling system maintains operation below 45 dB.

Smart Control and Quick Response

A microprocessor-driven system enables real-time voltage regulation with a response time of less than one second. The digital LED display provides clear readings of voltage status, while the initial delay function helps protect connected devices from abrupt power changes after restarts.

FAQs of 230V Automatic Voltage Stabilizer:

Q: How does the automatic voltage stabilizer protect my appliances during voltage fluctuations?

A: The stabilizer senses input voltage variations between 170V and 270V AC and instantly corrects them to ensure a consistent 230V 5% output. Its microprocessor-based control, combined with short circuit, fuse, and high/low voltage cutoff protections, keeps your sensitive equipment safe from electrical surges or dips.

Q: What types of electrical devices can I use with this voltage stabilizer?

A: It is designed for a range of home and light industrial appliances, such as televisions, refrigerators, air conditioners, computers, and other electronics that require stabilized voltage for optimal performance and longevity.

Q: When and where should I install this voltage stabilizer for best performance?

A: Install the stabilizer close to the appliances it will protect, either wall-mounted or floor-mounted as per your space requirements. It works efficiently in ambient temperatures from 0C to 45C and can handle relative humidity up to 95% (non-condensing), making it suitable for diverse indoor environments.

Q: What is the installation process for this voltage stabilizer?

A: The stabilizer is straightforward to install, featuring screw-type input/output terminals for secure connections. Ensure the device is mounted on a stable surface, either on the wall or floor, and properly connect the power and appliance cables as per the provided instructions.

Q: How does the initial delay function benefit my appliances?

A: Upon power restoration, the stabilizer introduces a delay of 5 seconds before supplying voltage to the connected appliances. This feature prevents sudden electrical surges, enhancing the safety and lifespan of sensitive equipment.

Q: What are the main benefits of using a copper-wound transformer in this stabilizer?

A: Copper-wound transformers offer superior conductivity, efficient energy transfer, and long-lasting durability. This results in higher operational efficiency and reduced power loss, which are crucial for stable and economical appliance protection.
